SQLab 613 R integrated bottle holder 2.0 20NO

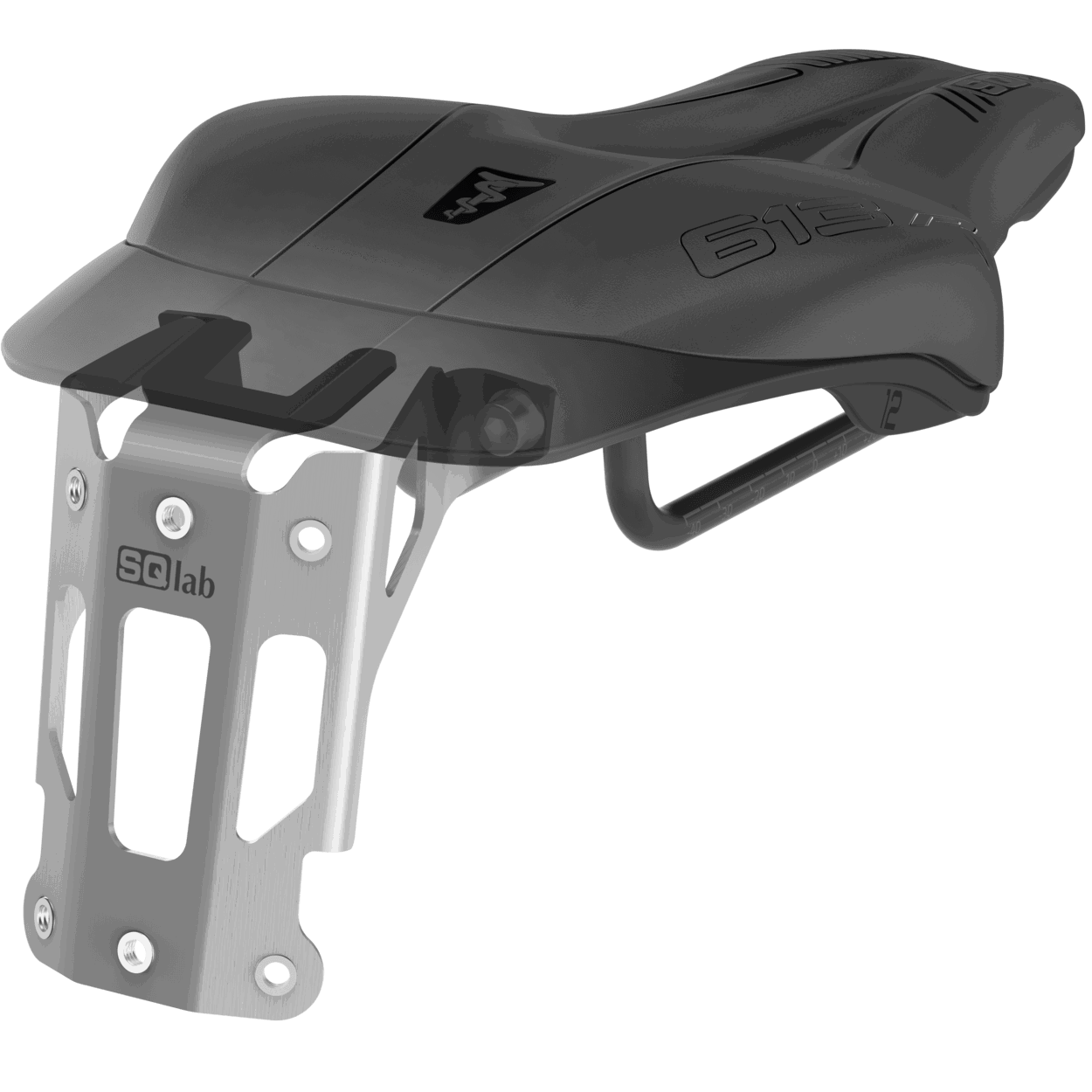

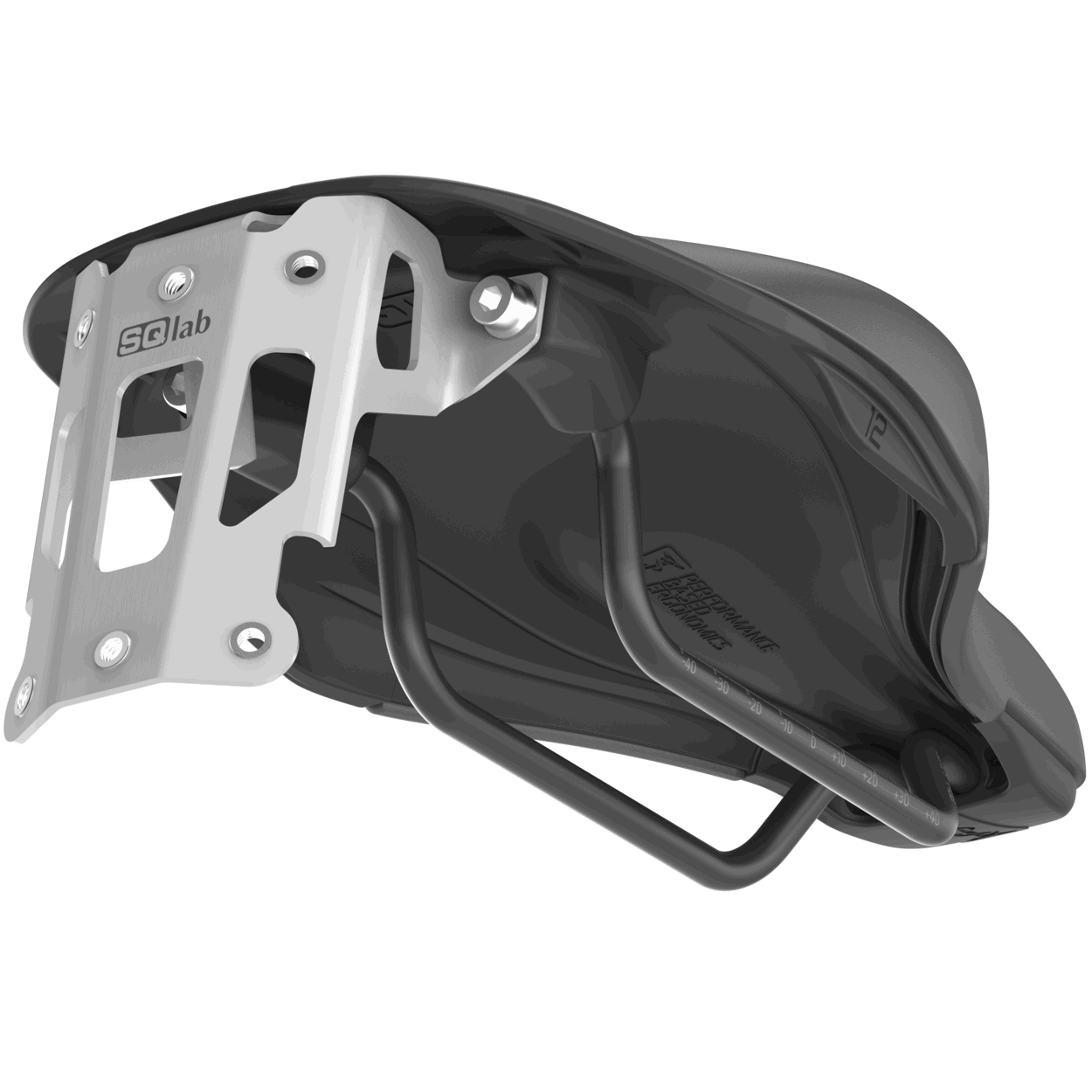

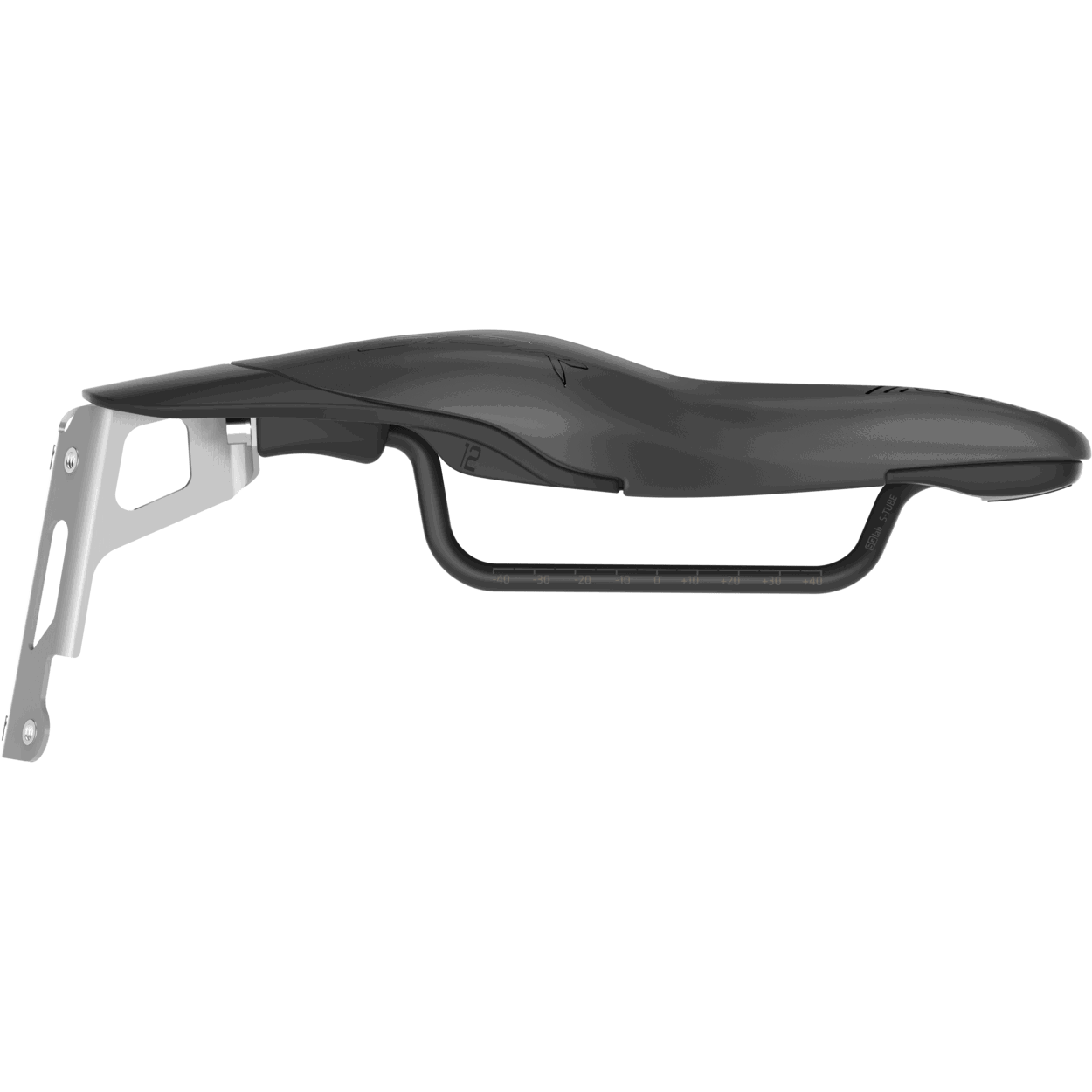

The 613 R ERGOWAVE® integrated bottle adapter allows the mounting of bottle cages on the saddle. The bottle mount is tilted in riding direction. The orientation of the bottle, explicitly allows to pull it out of the mount more ergonomically. The aerodynamic position can be maintained while grasping the bottle. This enables intuitive handling and clearly distracts less from the racing or riding happenings. holds up to 2 bottle cages / bottles max  fits SQlab 613 R Ergowave® saddle only (Carbon und S-Tube)  Hole spacing: 64mm standard, compatible for every bottle cage max. Load: 1,5 kg   Scope of supply: Bottle cage bracket, mounting accessories enclosed. Does not include saddle and bottle cage. Assembly instruction: Push the flat tip, which can be found at the top centre of the adapter, into the groove provided for this purpose on your 613 R ERGOWAVE® . Now screw the two screws supplied (M5 x 25) into the thread located behind the connection of the rails to the saddle shell.
